2017-2025 Nissan Murano ABS Module: Fire Risk Recall, Programming, and Part Matching
This guide covers the critical ABS pump fire risk recall for 2017-2018 models, complex part number matching, and mandatory programming required for the Murano.
- A major fire risk recall affects 2017-2018 Muranos. If your ABS light stays on for more than 10 seconds, park outside and contact a dealer immediately.
- A replacement ABS module is NOT plug-and-play. It MUST be programmed to your vehicle's VIN using Nissan's CONSULT-III Plus software by a dealer or specialist shop.
- Part compatibility is extremely complex. You must match the OEM part number from your old module exactly, based on your Murano's drivetrain (AWD/FWD) and adaptive cruise control options.
- Buying a used OEM module can save over $1,000 compared to a new part, but you must factor in the mandatory costs for professional installation, brake bleeding, and programming.
CRITICAL SAFETY RECALL: Fire Risk in 2017-2018 Murano Models
Warning: Certain 2015-2018 Nissan Murano vehicles are part of a major safety recall due to a fire risk. The anti-lock brake (ABS) actuator pump can leak brake fluid onto the internal electronic circuit board. This can cause an electrical short, which may lead to a fire, even when the vehicle is parked and turned off.
The primary warning sign is the ABS warning light on the dashboard staying illuminated for more than 10 seconds after starting the engine. If you experience this symptom, Nissan urgently advises that you park the vehicle outdoors, away from structures and other vehicles, and do not drive it. Contact a Nissan dealer immediately to have your vehicle towed and inspected under the recall campaign (NHTSA recall number 18V-601 and subsequent expansions R1916/R1920). The dealer will inspect the module's serial number and replace the entire ABS actuator assembly free of charge if it is part of the affected batch.
Symptoms of a Failing ABS Control Module
Aside from the critical recall issue, the ABS module can fail due to internal electronic faults. When this happens, you will typically see a combination of warning lights and changes in brake behavior.

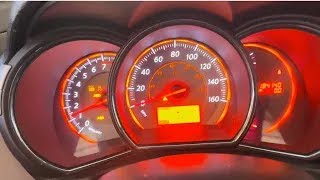

- ABS, VDC, and Slip Warning Lights: The most common symptom is the illumination of the ABS, Vehicle Dynamic Control (VDC), and/or traction control (slip) warning lights on your instrument cluster. These systems 🎬 Watch: How to diagnose SLIP, VDC, and ABS warning lights. all rely on the ABS module, so they are disabled when it fails.
- Unresponsive or Spongy Brake Pedal: The brake pedal may feel harder to press than usual, or it may feel soft and spongy, requiring more travel to engage the brakes.
- Wheels Locking Up: The entire purpose of ABS is to prevent your wheels from locking and skidding during hard braking. If your wheels lock up in an emergency stop or on a wet surface, the ABS system is not functioning.
- Associated OBD-II Trouble Codes: A professional scan tool can read codes from the ABS module. Common codes pointing to a faulty module include C1110 (Controller Failure) and C0110 (ABS Pump Motor Circuit). 🎬 See a demonstration of common ABS pump motor circuit failures. You may also see codes for wheel speed sensors, but if the module itself has failed, it may not be able to communicate with the sensors at all.
Buying a Used 2017-2025 Murano ABS Module: A Buyer's Guide
Due to the high cost of a new OEM module, a used part is a very popular option. However, compatibility is extremely complex for this part. You must get the exact correct module for your vehicle's specific configuration. Failure to do so will result in a part that will not work.
Step 1: Identify Your Murano's Exact Configuration
Before you begin searching, you must know two key details about your vehicle:
- Drivetrain: Is your Murano Front-Wheel Drive (FWD) or All-Wheel Drive (AWD)?
- Adaptive Cruise Control: Is your Murano equipped with Intelligent Cruise Control (ICC), also known as adaptive cruise? This is typically found on higher trim levels like SL and Platinum.
Step 2: Match the OEM Part Number EXACTLY
This is the most important step. Do not buy a module based on year alone. You must physically inspect your original module and match the part number printed on it to the used part you are considering. The warnings provided in the initial data highlight different modules for different options. Below is a guide to help decipher some of the part numbers, based on research and supplier data.
| Vehicle Configuration | Known OEM Part Numbers |
|---|---|
| AWD without Adaptive Cruise Control (S, SV trims) | 47660-9UA1A, 47660-5AA0A, 47660-5AA1A, 47660-9UF6B |
| AWD with Adaptive Cruise Control (SL, Platinum trims) | 47660-9UE1C, 47660-9UF0D, 47660-9UF1D, 47660-9UG6D, 47660-9UH1D |
| FWD without Adaptive Cruise Control | 47660-9UF6A |
| FWD with Adaptive Cruise Control (SL, Platinum trims) | 47660-9UD6C, 47660-5AE1B, 47660-5AE1C |
| Part Numbers with Unconfirmed Specifics | 47660-7BA2A, 47660-9UF0C, 47660-9UF1C |
Warning: This table is a guide. Always confirm the part number on your original module before purchasing a replacement. Some part numbers supersede older ones. For example, 47660-9UA1A is a replacement for 47660-5AA0A and 47660-5AA1A.
Step 3: Inspect the Used Module
When you receive the used module, inspect it carefully before installation.
- Check for Fluid Contamination: Look for any signs of brake fluid residue, staining, or corrosion on the electrical connector and housing, which would indicate the recall-related leak.
- Inspect Connectors: Ensure the electrical connector pins are straight, clean, and free of corrosion.
- Verify No Physical Damage: Check the aluminum hydraulic block and the black plastic electronic module for any cracks, deep gouges, or signs of being dropped.
Programming and Calibration Requirements
A replacement ABS control module, whether new or used, MUST be programmed and configured to your vehicle's VIN and specific options. This is not a plug-and-play part.
- Nissan CONSULT-III Plus: The programming is performed using Nissan's proprietary dealership diagnostic software, called CONSULT-III Plus.
- Dealer or Specialist Required: While some high-end independent shops may have this software or a compatible J2534 passthrough device, a Nissan dealership is the most reliable place to have this work done. Most DIY mechanics will not be able to perform the programming.
- Required Calibrations: After the module is installed and programmed, the technician must also perform an "Adjustment of Steering Angle Sensor Neutral Position" and a "Calibration of Decel G Sensor" to ensure the VDC and traction control systems work correctly.
Pro Tip: You can save on labor by having your mechanic install the used module and then taking the vehicle to a dealer or specialist for the final programming and calibration only.
Replacement Cost Comparison
The cost to replace the ABS module varies widely depending on the source of the part. The mandatory programming adds to the total cost.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Module | $980 - $1,500+ |
| Remanufactured Module | $350 - $620 |
| Used OEM Module | $75 - $250 |
| Shop Labor (Installation & Brake Bleed) | $250 - $400 (approx. 2.5 hours) |
| Dealer Programming & Calibration | $150 - $300 |
| Total (with Used OEM) | $475 - $900 |
| Total (with New OEM) | $1,380 - $2,200+ |
Frequently Asked Questions (FAQ)
Is it safe to drive my Murano with a bad ABS module?
It is not recommended. While your standard hydraulic brakes will still function, you will not have anti-lock brakes, traction control, or stability control. This significantly increases the risk of losing control and skidding during an emergency stop or in poor weather conditions. If your ABS light is on for more than 10 seconds, it could indicate the fire risk recall, and you should not drive the vehicle at all.
Can I just replace the electronic part of the module without bleeding the brakes?
Some experienced mechanics do this by carefully removing the electronic module from the hydraulic pump assembly while it's still in the car. This avoids opening the brake lines. However, it is a delicate procedure and risks damaging the solenoid pins 🎬 Watch: A pro tip for replacing the module without bleeding brakes. or the gasket. For most DIYers and professionals, replacing the complete assembly and then performing a full brake bleed is the recommended and safer procedure.
Does a used ABS module need to be from a Murano with the same mileage?
No, the mileage of the donor vehicle does not matter. However, the part number and vehicle configuration (AWD/FWD, with/without adaptive cruise) must be an exact match. The module will be programmed to your vehicle's VIN during installation.
Why are my ABS and traction control lights on after replacing a wheel bearing?
The wheel speed sensor is located at the wheel hub. It's possible the sensor was damaged during the wheel bearing replacement, or the wiring was not reconnected properly. A problem with a single wheel speed sensor will disable the entire ABS/VDC/TCS system and turn on the warning lights. Always diagnose sensor issues before condemning the expensive ABS module.
Helpful Videos
Technical Specifications
OEM Part Numbers: 47660-7BA2A 47660-9UF0C 47660-9UF0D 47660-9UF1C 47660-9UF1D 47660-9UF6A 47660-9UF6B 47660-9UG6D 47660-9UH1D 476605AA0A 476605AA1A 476605AE1B 476605AE1C 476607BA2A 476609UA1A
The complete assembly includes the electronic control unit (module) and the hydraulic pump/actuator block. Requires programming via Nissan CONSULT-III Plus software. Post-installation calibration of the Steering Angle Sensor and Decel G Sensor is required.
