2010 Mercedes-Benz S500L ABS Module: Failure, Programming, and Replacement Guide
This guide covers common failures, diagnostic codes, and the critical programming requirements for the 2010 Mercedes-Benz S500L ABS/ESP control module.
- A replacement ABS module (new or used) is NOT plug-and-play and requires mandatory SCN coding by a dealer or specialist to function.
- This part is for vehicles WITHOUT Distronic (Adaptive Cruise Control). Verify your vehicle's options before purchasing.
- Repairing your original module is often the best solution as it avoids the need for expensive and complex programming.
- Common failure symptoms include a cluster of warning lights (ABS, ESP, Power Steering) and an ABS pump that runs continuously, draining the battery.
Symptoms of a Failing ABS Control Module
A failing ABS module in the 2010 S500L typically causes a cascade of warnings on the instrument cluster as multiple safety systems are disabled. The root cause is often an internal failure of the electronic components on the module's circuit board due to heat and vibration over time.
- ABS, ESP, and Brake Warning Lights: The most common symptom is the illumination of the ABS, ESP (Electronic Stability Program), and BRAKE warning lights on your dashboard. You may also see messages like “EBD, ABS, ESP inoperative See Owner's Manual”. 🎬 Watch this diagnostic walkthrough for ABS/ESP inoperative warnings.
- Power Steering Malfunction: The ABS module provides wheel speed data to the power steering system. When the module fails, you may see a power steering malfunction warning and the steering may become heavy or difficult, especially at speeds above 15 mph.
- ABS Pump Runs Constantly: A critical symptom is when the ABS hydraulic pump motor runs continuously, even after the car is turned off and the key is removed. This can drain the battery very quickly.
- Unresponsive or Spongy Brake Pedal: The brake pedal may feel different, requiring more effort to press, or feeling unresponsive.
- Wheels Locking Up: The primary function of ABS is to prevent wheels from locking during hard braking. If the module has failed, the system will not intervene, and your wheels can lock up and skid, increasing stopping distances and causing a loss of steering control.
- No Communication with Scanner: A professional diagnostic scanner may be unable to communicate with the ABS/ESP control unit, which points directly to a failed module.
Common Diagnostic Trouble Codes (DTCs)
A generic OBD-II scanner may not be able to read these codes. A Mercedes-specific scanner (like XENTRY) is required for accurate diagnosis. Codes pointing to an internal module failure are the most definitive signs.
| Code | Description |
|---|---|
| 5001, 5944, 5945 | Control Module N30/4 (ESP Control Unit) Internal Fault. |
| 5066 | Power Supply A7/3m1 (High-Pressure Return Pump). |
| 5775, 5964 | Component A7/3 (Traction System Hydraulic Unit) has an internal fault. |
| 6301 | The VIN in the ABS module and the ignition switch control unit are not identical (occurs after installing an uncoded replacement). |
CRITICAL: Programming and Compatibility
Replacing the ABS module on this vehicle is not a simple plug-and-play task. Failure to follow these steps will result in a non-working part.
Warning: A replacement ABS module, whether new or used, MUST be programmed to your vehicle’s VIN. This process is called SCN (Software Calibration Number) Coding. It requires a diagnostic tool with an active subscription to Mercedes-Benz servers, such as the dealer's XENTRY system or a high-end professional tool from brands like Autel or iSCAN. Without SCN coding, the module will not function and all warning lights will remain on.

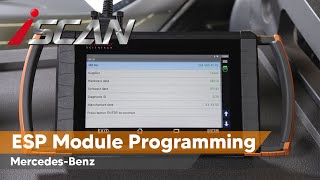

🎬 See how to code and program a Mercedes ABS module.Compatibility: Distronic vs. Non-Distronic
This is the most common compatibility mistake. The S500L was available with and without Distronic (adaptive cruise control). These two systems use different ABS modules.
- This Part Fits: Vehicles WITHOUT Distronic adaptive cruise control.
- How to Check for Distronic: Look at the front grille. Vehicles with Distronic have a solid, flat, plastic-covered Mercedes star emblem that houses the radar sensor. Vehicles without Distronic have a traditional grille with a chrome, three-dimensional star ornament that you can see through.
Buying a Used ABS Control Module
Given the high cost of a new module, a used OEM part is a practical choice, but careful verification is essential.
- Confirm Programming Capability FIRST: Before buying any part, call your dealer or a trusted independent European auto specialist and ask if they are willing and able to perform SCN coding on a used ABS module. Many dealerships will only program brand new parts they supply. Do not purchase a module until you have a confirmed plan for programming it.
- Match the Part Number Exactly: The electronic control module can be separated from the hydraulic pump assembly. Find the part number on the black plastic housing of your original electronic module. It will typically start with 'A221...'. The part number on the used module should match yours exactly to ensure compatibility.
- Verify It's for a Non-Distronic Car: Re-confirm with the seller that the donor vehicle was not equipped with adaptive cruise control.
- Inspect for Damage: When you receive the part, check the electrical connector pins for any signs of corrosion or damage. Ensure the plastic housing is not cracked or showing signs of heat damage.
Pro Tip: Consider repairing your original module. Several companies offer mail-in repair services. The primary benefit is that a repaired original module retains your car's VIN and SCN coding, making it plug-and-play upon reinstallation and saving you the significant cost and hassle of programming.
Replacement Overview
The physical replacement of the electronic module is moderately difficult but can be done without opening the hydraulic brake lines, which avoids the need for brake bleeding.
- Disconnect the vehicle's battery.
- Locate the ABS pump assembly in the engine bay.
- Disconnect the large main electrical harness connector from the module.
- Using an E6 external Torx socket, remove the four screws holding the electronic module to the aluminum hydraulic block.
- Carefully pull the module straight off the hydraulic block.
- Install the replacement module, reconnect the harness, and reconnect the battery. 🎬 Watch this video guide on ABS pump removal and replacement.
- The vehicle must then be taken to a shop for SCN coding.
Cost Breakdown
Prices can vary significantly based on your location and the chosen repair path.
| Item | Estimated Cost | Notes |
|---|---|---|
| New OEM Module (Part Only) | $1,800 - $2,000 | Sourced from a Mercedes-Benz dealer. |
| Used OEM Module (Part Only) | $150 - $400 | Prices from online marketplaces like eBay. Requires programming. |
| Remanufactured / Repaired Original | $600 - $850 | Mail-in service for your original part. Often does not require programming. |
| Shop Labor (Installation) | $200 - $350 | For physical replacement of the module only. (1.5-2.5 hours). |
| Shop Labor (Programming) | $150 - $400 | SCN Coding service for a new or used module. (1.0-1.5 hours). |
Frequently Asked Questions (FAQ)
Does a used ABS module have to be programmed?
Yes, absolutely. Any replacement module, new or used, must be SCN coded to your car's VIN to function. It is not a plug-and-play part. The only exception is if you have your original module repaired and reinstalled.
Can I drive my S500L with a bad ABS module?
It is not recommended. While the car may have basic hydraulic braking, all electronic safety aids like ABS, traction control (ESP), and stability control will be disabled. This makes the vehicle much less stable in emergency braking or poor weather conditions, significantly increasing the risk of an accident.
How do I know for sure if my car has Distronic adaptive cruise control?
The easiest way to tell is by looking at the Mercedes star in the center of the front grille. If it's a solid, flat plastic panel, your car has Distronic. If it's a traditional, hollow, three-dimensional chrome star, your car does not have Distronic.
Is it better to repair my original module or buy a used one?
Repairing your original module is often the better choice. While the initial cost might be higher than a used part, it saves you the significant expense and difficulty of finding a shop to perform SCN coding. A repaired original module is plug-and-play, as it retains all of your vehicle's specific programming.
Recalls and Technical Service Bulletins (TSBs)
As of mid-2024, there are no specific NHTSA recalls for the ABS control module on the 2010 Mercedes-Benz S500L. A 2010 recall existed for a power steering line fitting on some models, but it is unrelated to the ABS module itself. Always check the official NHTSA website with your vehicle's VIN for the most up-to-date recall information.
Helpful Videos
Technical Specifications
OEM Part Numbers: 2214318712 2214319712 2219001701 2219010600 A2214318712 A2214319712 A2219001701 A2219010600
Fits W221 chassis vehicles without Distronic (Adaptive Cruise Control).
