2007-2009 Mazdaspeed3 ABS Module: Decoding Lights, Part Numbers, and Programming Myths

Critical Compatibility Warning: This ABS pump and module assembly, part number B3YF-43-7AZ, fits ONLY the 2007-2009 Mazdaspeed3 model with the 2.3L Turbo engine and Dynamic Stability Control (DSC). It will not function in a standard, non-turbo Mazda 3 or models without DSC. Always verify your vehicle is a Mazdaspeed3 and that the part number on your old module matches exactly before purchasing a replacement.

Symptoms of a Failing ABS Module

When the ABS module in a Mazdaspeed3 begins to fail, it can manifest in several ways. The most common sign is a collection of warning lights on your dashboard, but other symptoms may also appear.

• ABS and DSC/TCS Warning Lights: The most frequent symptom is the illumination of the ABS, DSC, and/or traction control (skidding car icon) lights on the instrument cluster. These lights may come on intermittently at first, sometimes triggered by temperature changes, but will typically become permanent as the failure progresses.
• Loss of Cruise Control: When the ABS/DSC system flags an error, it will often disable the cruise control system as a safety precaution.
• No Communication with Scan Tool: A common electronic failure mode is a total loss of communication with the module. When a mechanic tries to read fault codes, their scan tool will be unable to connect to the ABS module, often logging a U0121 code (Lost Communication with ABS Module) in other vehicle computers like the ECU.
• ABS Pump Motor Fault Codes: A specific code, C0020, points directly to a problem with the integrated pump motor. This is a known issue related to the motor's internal components.
• Changes in Braking Feel: While your conventional brakes will still work, you may notice the loss of the anti-lock function. During a panic stop, the wheels may lock up and skid. In some less common cases, a failing hydraulic unit can cause a spongy or unresponsive brake pedal.

Known Issues and Technical Service Bulletins (TSBs)

While there are no specific recalls for the Mazdaspeed3's ABS module in the US, a highly relevant Technical Service Bulletin (TSB 04-002/13) was issued for the following generation (2010-2011) which uses a similar design. The TSB notes that in areas with high heat and humidity, the pump motor brush inside the ABS hydraulic unit can develop poor contact, causing the ABS light to turn on and logging DTC C0020. Mazda updated the brush material to correct the problem. This indicates a known weakness in the pump motor design that can lead to premature failure.

Diagnosing the Problem

Before condemning the expensive ABS module, it's important to rule out simpler issues:

1. Read the Fault Codes: Use an OBD-II scanner capable of reading ABS codes. If you have codes like U0121 or C0020, the module itself is the prime suspect. If you have codes for a specific wheel speed sensor (e.g., C1236), the problem is likely the sensor or its wiring, not the module.
2. Check Fuses: Always check the fuses for the ABS system in the vehicle's fuse box. A simple blown fuse can disable the entire system.
3. Inspect Wiring and Grounds: A loose or corroded ground wire 🎬 Watch: Solving complex Mazda ABS and steering issues can cause a loss of communication and trigger a U0121 code. Visually inspect the wiring harness and connector going to the ABS module for any signs of damage or corrosion.

Buying a Used ABS Control Module

Given that a new OEM module can be prohibitively expensive, a used OEM unit is often the most practical solution. Here’s what you need to know to buy with confidence:

• Match the Part Number EXACTLY: The most critical step is to match the OEM part number. For the 2007-2009 Mazdaspeed3, the primary part number is B3YF-43-7AZ (or B3YF437AZ). Do not install a module from a standard Mazda 3; it will not work.
• Source from a Mazdaspeed3: Ensure the used part was removed from a confirmed 2007, 2008, or 2009 Mazdaspeed3. This guarantees it has the correct internal hardware and software for the DSC system.
• Inspect the Connector: Ask for clear photos of the electrical connector pins on the module. Look for any signs of green or white corrosion, or bent pins. A module with a corroded connector should be avoided.
• Why Used OEM is a Good Choice: For this specific part, a used OEM module is often a better choice than a new aftermarket one. Aftermarket units may have compatibility or programming issues, while a used OEM part with a matching number is designed to work with your vehicle's systems.

Programming: Is It Required?

This is a common point of confusion. Based on extensive research from technical forums and mechanic experiences, if you purchase a used ABS module with the exact same part number (B3YF-43-7AZ) as your original, it should be a plug-and-play replacement that does not require programming or a dealer visit. The module may need to self-initialize, which typically involves starting the car and driving a short distance.

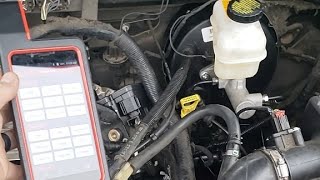

However, if you install a brand new module from a dealer or a used module with a different part number, it will likely require a Programmable Module Installation (PMI) using Mazda's diagnostic software (IDS) 🎬 See how to program a Mazda ABS module to write your vehicle's VIN to the module. Some independent shops with high-end scan tools may also be able to perform this service.

Replacement Cost Breakdown

The cost to replace the ABS module can vary significantly depending on the source of the part.
