2007-2018 Jeep Wrangler ABS Module: Fixing the ESP/BAS Lights and Programming a Replacement
This guide explains the common failure symptoms, diagnostic codes, and the critical programming steps required when replacing the ABS control module on a Jeep Wrangler JK.
- A replacement ABS module (new or used) is NOT plug-and-play; it absolutely requires programming to your Jeep's VIN to function correctly.
- The most common symptoms of failure are the ABS, ESP/BAS, and traction control warning lights all coming on at once.
- You can replace just the electronic module without opening brake lines, avoiding the need to bleed the brake system.
- DIY programming is possible using affordable tools like the JScan app and a compatible OBD2 dongle, saving a trip to the dealer.
Symptoms of a Failing Jeep Wrangler ABS Module
When the ABS module in a 2007-2018 Jeep Wrangler begins to fail, the dashboard often lights up with multiple warnings. While other issues can cause these lights, a faulty module is a common culprit, especially if they appear together.
- ABS, ESP/BAS, and Traction Control Lights: The most common symptom is having the Anti-lock Brake (ABS), Electronic Stability Program (ESP), Brake Assist System (BAS), and Traction Control (the icon of a car with squiggly lines) warning lights all illuminate on the instrument cluster. This indicates the entire stability and traction system is offline.
- Red "BRAKE" Light: In some cases, the main red "BRAKE" warning light will also come on, in addition to the other lights. This often points more directly to a failure within the ABS module or hydraulic unit.
- Cruise Control Inoperable: With the stability system faulted, the vehicle's computer will typically disable the cruise control function as a safety precaution.
- Diagnostic Trouble Codes (DTCs): A scan tool that can read ABS codes is essential for diagnosis. Common codes 🎬 Watch: How to diagnose ABS and traction control lights for a failed module include:
- C2200 - Antilock Brake Module Internal Failure.
- C2116 - ABS Pump Motor Low Voltage, often caused by an internal fault in the module.
- C102A - Left Rear Wheel Speed Sensor Circuit (or similar codes for other wheels). While this can be a bad sensor, it can also indicate a fault in the module's ability to read the sensor.
Pro Tip: Before condemning the ABS module, check for simpler causes. A single bad wheel speed sensor, a damaged wire to a sensor, or even a severely misaligned steering wheel can trigger the ESP/BAS and traction control lights. Cleaning the main ABS module electrical connector with electronics cleaner can also sometimes resolve issues caused by corrosion.
Known Issues, Recalls, and Technical Service Bulletins (TSBs)
As of early 2026, there are no major open safety recalls specifically for the 2007-2018 Jeep Wrangler JK ABS control module. However, Chrysler has issued numerous software updates for ABS modules across its vehicle lines to improve performance and fix software bugs. These are typically performed by a dealer when a vehicle is in for service. The existence of these updates highlights why programming a replacement module is so important—it ensures the unit has the latest, most stable software for your vehicle. There have also been reports of widespread backorders for ABS modules on newer Jeep models, which can sometimes affect parts availability for the JK generation.
Programming and Calibration: The Most Critical Step
Warning: A replacement ABS control module, whether new or used, must be programmed to your vehicle’s Vehicle Identification Number (VIN). It is not a plug-and-play part. Skipping this step will result in persistent warning lights and trouble codes like C2206 (Vehicle Configuration Mismatch).
Programming syncs the module to your Jeep's specific features and other computers. You have three main options for getting this done:
- Jeep Dealership: The dealer uses a proprietary tool called wiTECH to perform the programming. This is the most straightforward but often most expensive option. The cost for programming alone is typically between $150 and $200.
- Independent Repair Shop: A well-equipped independent shop that services Chrysler/Jeep vehicles may have a high-end bidirectional scan tool or a wiTECH subscription and can perform the programming.
- DIY with JScan: For the hands-on owner, it is possible to program the module yourself. This requires a compatible OBD2 Bluetooth or Wi-Fi dongle (like a VGATE iCar) and a smartphone app called JScan. The app requires a one-time license fee for your VIN (around $20-$25) but gives you access to dealer-level functions, including the "ABS Initialization" routine. 🎬 See how to program your module using the JScan app The process involves a short driving sequence with a 90-degree turn to calibrate the sensors.
Buying a Used Jeep Wrangler ABS Module
Given the high cost and potential backorders of new OEM modules, a quality used module is an excellent alternative. However, you must be careful to buy the correct part.
- Match the Part Number Exactly: There are many different ABS modules for the JK Wrangler, with different part numbers for different years and options. You must match the OEM part number from your original module to the used one you are buying. Do not rely on visual appearance alone.
- Verify the Build Date: For 2012-2014 models, pay close attention to the vehicle's build date. For example, part number 68145835AE fits vehicles built up to June 29, 2014. A part from a later 2014 model may not be compatible.
- Inspect the Connector Pins: When you receive the used module, carefully inspect the large electrical connector port. Look for any signs of corrosion (green or white powder) or bent pins. Water intrusion is a potential failure mode, and a corroded connector is a major red flag.
- Buy the Assembly: The part is often sold as a complete unit with the hydraulic pump attached. Even if you only need the electronic module, buying the complete assembly is common and ensures you have all the necessary components.
- Why Used OEM is a Good Choice: A used OEM Mopar module that is programmed correctly is often more reliable than a new, non-OEM aftermarket unit. Aftermarket modules can have a higher failure rate and may have compatibility issues with the vehicle's programming software.
Replacement Guide Overview
One of the best features of this design is that the electronic control module can be replaced without opening the hydraulic brake system, meaning no brake bleeding is required if you are careful.
- Disconnect the Battery: Always disconnect the negative battery terminal before working on vehicle electronics.
- Access the Module: The ABS module/pump assembly is located in the engine bay, typically on the driver's side.
- Remove the Connector: Unlatch and remove the large main electrical harness connector from the module.
- Unmount the Assembly: Remove a 10mm mounting bolt and carefully pry the entire assembly upwards to free it from its rubber mounting grommets. There is enough flex in the hard brake lines to move it slightly without disconnecting them.
- Separate the Module: With the assembly shifted, you can access the four T20 Torx screws that attach the electronic module to the aluminum hydraulic block. Remove these screws.
- Swap the Module: Gently pull the old module off. Clean the surface of the hydraulic block and install the new seals that should come with the replacement module. Attach the new module and reinstall the four Torx screws.
- Reassemble: Push the assembly back into its grommets, reinstall the mounting bolt, reconnect the electrical harness, and reconnect the battery.
- Program the Module: The final step is to perform the ABS initialization/programming procedure using one of the methods described above.
Cost of Replacing a Jeep Wrangler ABS Module
| Part/Service | Estimated Cost |
|---|---|
| New OEM (Dealer) | $900 - $1,500+ |
| New OEM (Online) | $650 - $900 |
| Used OEM (Recycled) | $250 - $600 |
| Remanufactured (Module Only) | $100 - $300 |
| Shop Labor (Mechanical Swap) | $185 - $275 |
| Shop Labor (Programming) | $150 - $200 |
Frequently Asked Questions (FAQ)
Can I drive my Jeep with a bad ABS module?
Yes, but with significant risk. The vehicle's normal hydraulic brakes will still function, but you will not have anti-lock brakes, traction control, or electronic stability control. This means the wheels can lock up during a hard stop, causing a skid, and the vehicle will be less stable in emergency maneuvers or on slippery roads. It is strongly recommended to get the issue repaired as soon as possible.
Why are my ABS, ESP, BAS, and traction control lights all on at once?
These systems are all controlled by the ABS module. When the module detects a critical internal fault or loses communication with a key sensor, it shuts down all related safety functions as a fail-safe. This triggers all the associated warning lights to inform the driver that these features are disabled.
Do I have to bleed the brakes after replacing the ABS module?
No, not if you only replace the electronic control module. The module can be unbolted from the hydraulic pump block without opening any brake lines. If you replace the entire pump and module assembly, you will need to disconnect the brake lines and perform a full brake bleed, including a special "ABS bleed" procedure with a capable scan tool to purge air from the pump.
Can I use an ABS module from a different year Wrangler?
It is not recommended. Part numbers are very specific to year ranges and vehicle options. For example, modules for 2007-2011 models are different from 2012 and newer models. Always match the part number from your original module exactly to ensure compatibility.
Helpful Videos
Technical Specifications
OEM Part Numbers: 05179771AA 68003363AB 68003363AF 68030936AB 68067457AA 68089120AB 68145835AA 68145835AB 68145835AC 68145835AD 68145835AE 68211530AA P52126282AC

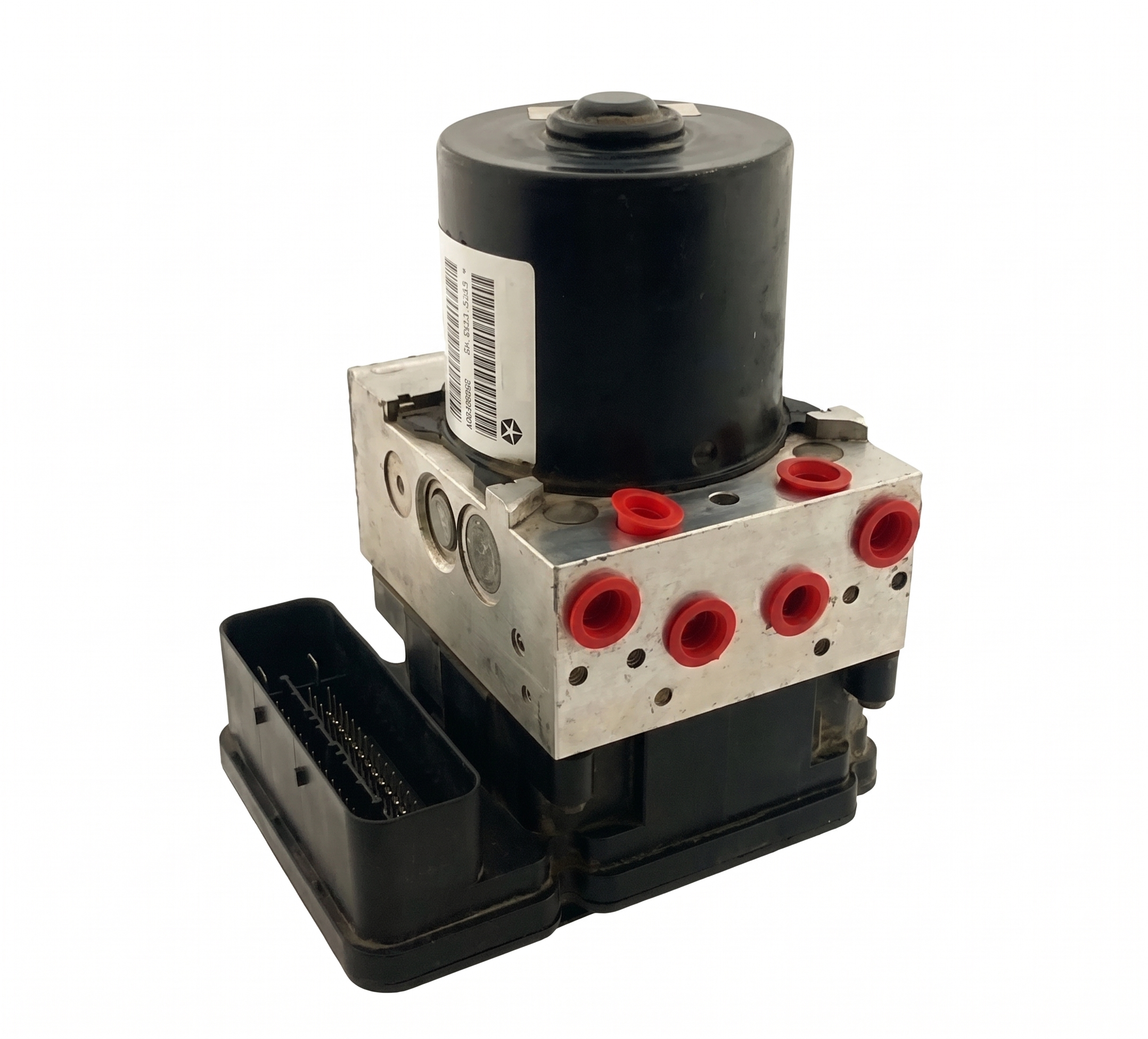

The assembly consists of an electronic control module and a hydraulic pump/valve block. The electronic module is attached with four T20 Torx fasteners.
