2010-2018 Ford Edge & Lincoln MKX ABS Module: Warning Lights, Recalls, and Programming

Symptoms of a Failing ABS Module

A problem with the ABS module in a 2010-2018 Ford Edge or Lincoln MKX will trigger a variety of dashboard warnings, often simultaneously. Because this single part controls multiple systems, you may see a cascade of lights and messages.

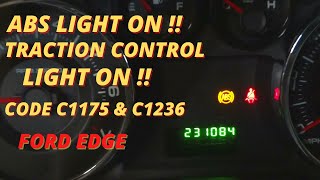

• ABS, Traction Control, and Stability Control Lights: The most common symptom is the illumination of the ABS warning light, the traction control light (often a car with squiggly lines), and a "Service AdvanceTrac" message on the instrument cluster. These systems are all managed by the ABS module, so a fault in the module disables all of them.
• Spongy or Unresponsive Brake Pedal: In some cases, an internal failure in the hydraulic portion of the module can cause a soft, spongy brake pedal or a pedal that goes to the floor with little resistance. This is a serious safety issue that requires immediate attention.
• ABS Pump Runs Constantly: You may hear a buzzing or humming sound from under the hood, even when the vehicle is off. This is the ABS pump motor running continuously due to an internal electronic fault. This can drain the battery.
• Unnecessary ABS Activation: The ABS may activate at low speeds on dry pavement when it shouldn't, causing a pulsing sensation in the brake pedal and a grinding noise during normal stops. This can be caused by a faulty module or a failing wheel speed sensor providing incorrect data.
• Diagnostic Trouble Codes (DTCs): A scan tool will likely retrieve codes pointing to the module. Common codes include internal faults like B1342, C2200, and U3000:49, communication loss like U0121, or pump motor circuit failures like C1095.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

Owners of these vehicles should be aware of important safety recalls. While not all are for the module itself, they affect the braking system and can produce similar symptoms.

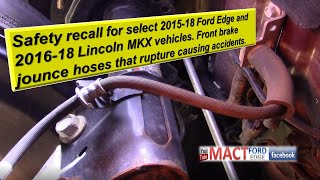

Brake Hose Recall (NHTSA 25V544 / Ford 25S87)

This is a major safety recall for 2015-2018 Ford Edge and 2016-2018 Lincoln MKX models. The front and rear brake jounce hoses can rupture and leak brake fluid. A fluid leak will cause a soft brake pedal, increased stopping distance, and will illuminate the red brake warning light. While this is not an ABS module failure, it is a critical brake system issue for this generation of vehicles. Ford dealers will replace the brake hoses free of charge.

Incorrect Software Recall (NHTSA 16V733 / Ford 16C14)

This recall affects a very small number of 2015-2016 Ford Edge vehicles. These vehicles may have had incorrect ABS and ESC software installed during a previous dealer service. This faulty software can disable the stability and traction control systems without warning the driver. The fix is for a Ford dealer to replace or reprogram the ABS module for free.

Compatibility: Critical Part Number and Production Date Details

Finding the correct used ABS module for your Edge or MKX is complicated. Ford used many different part numbers that depend on the vehicle's production date and options like Adaptive Cruise Control. Installing the wrong module will result in it not working and setting fault codes. Always match the part number from your original module exactly.

• 2010 Models: Generally use one type of module for all drivetrains (FWD/AWD) without adaptive cruise control. Part numbers often begin with 7T43.
• 2011 Models: There is a critical production date split. Modules for vehicles built on or after January 28, 2011 are different from earlier 2011 models. This applies to vehicles without adaptive cruise control.
• 2011-2014 Models: This range has many part numbers. It is crucial to distinguish between vehicles with and without Adaptive Cruise Control. Part numbers often begin with BT43, CT43, or DT43.
• 2013 Models (Specific Production Date): A specific set of part numbers applies only to vehicles built between February 15, 2013, and September 19, 2013. There are separate modules for vehicles with and without Adaptive Cruise Control within this date range.

Programming and Calibration: The Most Important Step

After physical installation, the module must be configured with your vehicle's specific information, known as "As-Built" data. This process writes your vehicle's VIN, tire size, axle ratio, and other parameters to the module. If this step is skipped, you will have a VIN mismatch code (U3002) and the ABS, traction control, and other systems will not work.

Who can program the module?

• Ford/Lincoln Dealer: Dealers have the factory scan tool (IDS) and can perform the programming and subsequent calibration procedures.
• Independent Shops: Many independent shops with advanced, professional-grade scan tools can perform the necessary programming.
• DIY with FORScan: For advanced DIY mechanics, the FORScan software (with a paid license) and a compatible OBD-II adapter can be used to write the As-Built data to a used module and perform the necessary service procedures. This involves downloading your vehicle's factory data and manually entering it.
🎬 Watch: How to program a Ford ABS module using FORScan

After programming, the module requires an "IVD Initialization" or "ABS Service Bleed" procedure to calibrate sensors and ensure all air is out of the hydraulic unit.

Buying a Used ABS Control Module

Given the high cost of a new module, a used OEM part is a smart, cost-effective option. Because this is a complex electronic and hydraulic part, careful inspection and verification are key.

• Match the Part Number Exactly: This is the most important rule. Due to the variations, even a module from the same year and model may not work if the part number is different. Find the number on the sticker of your original module.
• Inspect Connectors and Housing: Check the large electrical connector for any signs of corrosion, bent pins, or damage. Inspect the aluminum hydraulic block for any signs of cracking or severe corrosion.
• Source from a Reputable Seller: Buy from a seller that offers a warranty and has good reviews. This provides protection in case the part is faulty.
• Factor in Programming Costs: Remember that you will need to pay for programming. Call local shops for quotes before you buy the part so you know the total cost of the job.
• Repair Services: An alternative is to send your original module to a repair service. The benefit is that a repaired original module often does not require reprogramming, saving a significant step.
🎬 See this step-by-step ABS module replacement and programming guide
