2007 Equinox & Torrent ABS Control Module: Warning Lights, Programming, and Replacement

Symptoms of a Failing ABS Control Module

When the ABS control module in your 2007 Chevrolet Equinox or Pontiac Torrent begins to fail, your vehicle will give you several clear warning signs. The most immediate and obvious symptom is the illumination of one or more warning lights on your dashboard.

• ABS Warning Light: This is the most common indicator of a problem with the anti-lock braking system.
• Traction Control / StabiliTrak Lights: Because the ABS module controls these systems, their warning lights will also likely turn on.
• Brake Warning Light: In some cases, the primary red brake warning light may also illuminate.

In addition to dashboard lights, you may experience functional problems that compromise your vehicle's safety:

• Loss of ABS Function: During a hard stop, especially on wet or slippery surfaces, the wheels may lock up and skid. This is because the module is no longer properly modulating brake pressure.
• Unresponsive or Spongy Brake Pedal: The brake pedal may feel different, requiring more effort to press or feeling unresponsive.
• Inaccurate or Dead Speedometer: The ABS module often relays wheel speed information to the instrument cluster. A faulty module can cause the speedometer to give erratic readings or stop working altogether.
• ABS Pump Runs Continuously: You might hear the ABS pump motor running constantly, even when you are not braking. This indicates the module is sending incorrect commands.
🎬 Watch: 6 common symptoms of a failing ABS control module

Common Diagnostic Trouble Codes (DTCs)

A professional scan tool can read codes stored in the module. While many codes can indicate a problem, some of the most common ones pointing to an internal module failure or communication issue include:

• C0550: Electronic Control Unit (ECU) Performance
• U0121: Lost Communication With Anti-Lock Brake System (ABS) Control Module
• C0110: ABS Pump Motor Circuit Failure
• C0035, C0040, C0045: These codes relate to wheel speed sensor circuits, but if they appear simultaneously and instantly return after clearing, it can point to a faulty module rather than individual sensors.

Known Issues, TSBs, and Recalls

While there are no specific recalls for the ABS control module on the 2007 Chevrolet Equinox or Pontiac Torrent, there is a relevant Technical Service Bulletin (TSB) for the Pontiac Torrent.

• TSB #PIT-4756: This bulletin addresses situations where the ABS and StabiliTrak lights are on, and DTCs like U0121, C0550, C0186, C0196, C0710, or C0252 are stored. It suggests that the wiring harness going to the Electronic Brake Control Module (EBCM) may be chafing on a transmission mount or metal bracket, causing a short. Before replacing the module, it is crucial to inspect this wiring harness for damage.

No major recalls directly target the ABS control module for these specific vehicles. Recalls issued for the 2007 Equinox and Torrent were related to other systems like the fuel pump module, airbag sensors, and windshield mounting.

Buying a Used ABS Control Module

A used OEM ABS control module can be a cost-effective and reliable alternative to an expensive new unit. Since these modules are electronic, there are specific things to look for to ensure you get a good part.

Inspection and Compatibility

• Match the Part Number: The most critical step is to match the OEM part number. For the 2007 Equinox and Torrent, the primary part number is 19121967. Always verify the number on your original module before purchasing a replacement.
• Check for Physical Damage: Inspect the used module for any signs of damage. Look closely at the plastic housing for cracks and check the electrical connector pins to ensure they are straight and free of corrosion.
• Ask About the Donor Vehicle: If possible, find out the history of the vehicle the part came from. A module from a low-mileage vehicle that was not involved in a flood or front-end collision is always a better choice.
• FWD vs. AWD: This module fits both Front-Wheel Drive (FWD) and All-Wheel Drive (AWD) models of the 2007 Chevrolet Equinox and 2007 Pontiac Torrent. The programming process will configure it for your specific drivetrain.

Why Used OEM is a Smart Choice

For a complex electronic part like an ABS module, a used OEM unit is often superior to a new, cheap aftermarket alternative. The original GM part was designed and tested specifically for your vehicle's systems. Aftermarket modules can sometimes have compatibility issues or software glitches. A quality-inspected, used OEM module provides the original factory performance and reliability at a fraction of the price of a new dealer part.

Programming and Installation

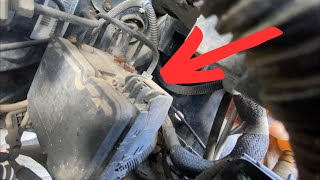

Replacing the ABS module is a moderately difficult job that can be performed by a skilled DIY mechanic. The module is located under the fuse box in the engine compartment.

Post-Installation Programming

This is the most critical step of the replacement process. The replacement module, whether new or used, must be programmed to your vehicle's VIN.

• Who can program it? A GM dealership can always perform the programming. Many independent repair shops with professional-grade diagnostic tools, such as a GM Tech 2 or access to GM's Techline Connect software, can also program the module.
• Why is it necessary? Programming syncs the module with the other computers in your vehicle, ensuring it has the correct software and calibration for your specific options (like FWD vs. AWD). Without programming, the system will not work, and warning lights will stay on.
🎬 Learn why programming is essential when installing a used module
• Calibration: After programming, a steering angle sensor calibration may also be required, which is performed using the same diagnostic tool.

Cost of Replacement

The cost to replace the ABS control module can vary significantly based on the part source and labor rates.
