Cadillac SRX & CTS ABS Module Failure (2004-2010): Programming, Codes, and Replacement

Symptoms of a Failing ABS Control Module

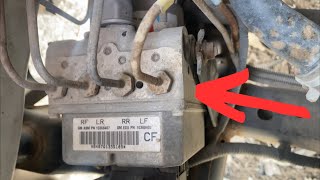

When the ABS module in a 2005-2010 Cadillac SRX 🎬 Watch this step-by-step guide on replacing the SRX ABS module assembly. or 2004-2007 Cadillac CTS 🎬 See how to locate and replace the ABS control module on a Cadillac CTS. begins to fail, you will typically see a combination of dashboard warning lights and changes in brake performance. These vehicles share a common GM platform (Sigma), so their failure symptoms are very similar.

• Warning Lights: The most common symptom is the illumination of the "ABS" warning light. Because the module controls other systems, you will likely also see the "Traction Control Off" and "Service StabiliTrak" lights appear simultaneously.
• Unresponsive or Hard Brake Pedal: In some failure modes, the brake pedal may become very stiff and difficult to press, requiring significantly more effort to slow the vehicle down.
• Wheels Locking Up: The primary job of the ABS is to prevent wheels from locking. When the module fails, this function is lost, and your wheels may lock up and skid during a hard stop, just like in an older vehicle without ABS.
• ABS Pump Runs Constantly: You may hear a buzzing or humming noise from the engine bay that doesn't turn off. This can be the ABS hydraulic pump motor running continuously due to a fault in the control module. If this happens, you should pull the ABS fuse to prevent the pump from burning out while you arrange for repairs.

Common Diagnostic Trouble Codes (DTCs)

A professional scan tool that can read ABS codes is necessary for proper diagnosis. Common codes associated with this issue include:

• U0121 - Lost Communication With Anti-Lock Brake System (ABS) Control Module: This is a very common code indicating that other computers in the car can no longer talk to the ABS module, pointing to a likely internal failure of the module itself.
• C0121 - ABS Control Module: This code often points to a performance issue or internal fault within the module's electronics.
• C0035, C0040, C0045, C0050 - Wheel Speed Sensor Circuit Faults: While these codes point to a specific wheel speed sensor, they can sometimes be triggered by a faulty module misinterpreting the sensor data. Forum users have reported replacing sensors multiple times only to find the module was the root cause.
• C0110 - ABS Pump Motor Circuit: This indicates a problem with the hydraulic pump's electrical circuit, which is often controlled directly by the ABS module.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While there are no widespread recalls specifically for ABS module failure on these models, there are related service actions and common problems to be aware of.

• 2005-2010 Cadillac SRX: A recall (NHTSA 04V151000) was issued for early 2004 AWD models for an issue where the ABS could temporarily fail; the fix was to reprogram the module. While this is for the year prior, it shows a history of software-related issues. Other recalls for this generation SRX focus on suspension components and power steering lines, not the ABS module directly.
• 2004-2007 Cadillac CTS: A major recall (NHTSA 15V225000) was issued for vehicles in cold-weather states due to front brake hose fittings corroding. This can cause a brake fluid leak, which will trigger a brake warning light and increase stopping distance, but it is a hydraulic issue, not an electronic one.

CRITICAL: Programming and Calibration Requirements

This is the most important factor to understand before replacing the module. This is NOT a plug-and-play part.

The ABS control module (often called the Electronic Brake Control Module or EBCM on GM vehicles) must be programmed to your vehicle's specific Vehicle Identification Number (VIN). It contains configuration data for tire size, drivetrain options, and suspension type. It also communicates with the Body Control Module (BCM) and Engine Control Module (ECM) for security and system integration.

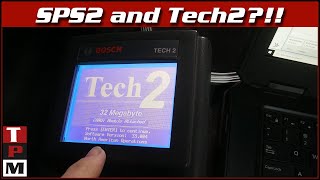

• Who can program it? A GM dealer or an independent shop with a GM Tech 2 or MDI scan tool and a subscription to GM's Service Programming System (SPS2) 🎬 Watch how to program an EBCM using a Tech 2 pass-thru with SPS2. software can perform the programming. Many mobile automotive programmers also offer this service.
• Can a used module be programmed? Yes, but it requires a specific procedure. The technician must select the "Replace and Reprogram" option within the GM software. Simply selecting "Program" will fail. This is a game-changer for buyers of used parts, as it confirms that a less expensive, recycled OEM module can be successfully installed.
• Anti-Theft Link: The module learns a unique identifier from the vehicle's BCM. If this doesn't match, it can set codes like B3902 (Incorrect Immobilizer Identifier Received) and may even prevent the vehicle from starting after a certain number of cycles. Proper programming resolves this.

Buying a Used ABS Control Module: What to Look For

A used OEM module is an excellent, cost-effective alternative to a new dealer part, especially since they can be successfully reprogrammed. Here’s how to buy a good one.

1. Match Your Part Number: This is the most critical step. There are many different part numbers for this module based on vehicle options. Find the number on your original module and match it exactly. The initial data provided lists numerous compatible numbers, including 19244856, 89047798, 25806657, and others.
2. Verify Vehicle Options: Compatibility is tied to specific options. When buying, you must know if your vehicle has:
   • Adaptive Cruise Control: Modules are different for vehicles with and without this feature.
   • Cadillac CTS Suspension Codes: The CTS has several suspension options, identified by RPO codes on the sticker in the trunk (usually on the underside of the trunk floor cover). Codes like FE1, FE2, FE3, FE4, and FE5 denote different levels of firmness (e.g., standard, sport, performance). The ABS module must match your car's suspension code for StabiliTrak to work correctly.
3. Physical Inspection: Inspect the used module for any physical damage. Check that the electrical connector pins are straight and free of corrosion. Ensure the plastic housing isn't cracked or showing signs of heat damage.
4. Plan for Programming: Before you buy the part, have a plan for programming. Call your local dealer or a trusted independent shop, confirm they can program a customer-supplied used ABS module, and get a quote.

Cost Breakdown for Replacement

Prices can vary significantly between new, used, and remanufactured parts. Labor for the physical swap is typically 1.5-2.5 hours, plus a separate charge for programming.
