2014-2016 Cadillac ELR ABS Module: Programming, RPO Codes, and Replacement

Symptoms of a Failing ABS Control Module

A failing ABS module will almost always trigger dashboard warning lights. Because it is integrated with multiple safety systems, you will likely see more than just the ABS light. Be aware that many of these symptoms can also be caused by less expensive parts, like a faulty wheel speed sensor or wheel hub, which are common issues on the ELR and its sister vehicle, the Chevrolet Volt.

• ABS Warning Light: The most common symptom is an illuminated ABS light on the instrument cluster.
• Traction Control / StabiliTrak Lights: A light indicating "Service StabiliTrak" or a disabled traction control system (a car icon with squiggly lines) is also very common, as these systems rely on the ABS module to function.
• Unresponsive or Hard Brake Pedal: The brake pedal may feel unusually hard to press or seem unresponsive, requiring more effort to stop the vehicle.
• Brakes Locking Up: The primary purpose of ABS is to prevent wheels from locking. If your wheels lock up and skid during braking, especially on slippery surfaces, the ABS module has likely failed.
• Associated Diagnostic Trouble Codes (DTCs): A professional scan tool is required to read ABS codes. A code for internal module failure is a clear sign of a bad module. However, be cautious of codes pointing to other components. A common communication code is U0121 (Lost Communication With ABS Control Module).

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

Safety Recall 14V144000 (GM #14087)

In March 2014, General Motors issued a safety recall for 656 units of the 2014 Cadillac ELR. The issue affected vehicles built without adaptive cruise control. A software error in the Electronic Brake Control Module (EBCM) could prevent the system from running certain diagnostics, potentially allowing the Electronic Stability Control (ESC) to become disabled without illuminating a warning light for the driver. This increased the risk of a crash. The remedy was for GM dealers to recalibrate the EBCM with updated software, free of charge. Before purchasing a used module, it's wise to ensure your vehicle has had this recall performed.

Buying a Used ABS Control Module: What You Must Know

Due to the high cost of a new OEM module, a quality used part is an excellent value. However, there are critical details you must verify to ensure you get the right part and that it can be installed successfully.

1. Verify RPO Code J17

This is the most important compatibility check. The ELR was available with different brake packages. This module fits vehicles with the standard brake system, identified by RPO code J17. It will not fit models with the optional performance brakes. You must check the RPO code on the vehicle the part is for.

• How to Find Your RPO Code: Look for the "Service Parts Identification" sticker. This is a silver label typically found inside the glove box or in the trunk area. It will have a list of three-character codes. You must find 'J17' on this list. Do not buy a module without confirming this code.

2. Programming is NOT Optional

A replacement ABS module—whether new or used—MUST be programmed to your vehicle's VIN after it is physically installed. The module will not function, and the warning lights will stay on, until this is done. Be very skeptical of any seller claiming to sell a "pre-programmed" or "plug-and-play" module for this vehicle; programming must be done while the module is connected to the car's data network.

3. Physical Inspection

When inspecting a used module, check for the following:

• No Corrosion: Inspect the aluminum housing and electrical connectors for any white, crusty corrosion.
• Intact Connectors: Ensure the electrical connector pins are straight and not damaged.
• Clean Hydraulic Ports: Check that the ports where the brake lines connect are clean and the threads are not damaged. The unit should have been capped to prevent dirt from entering.

4. Compatibility with Chevrolet Volt

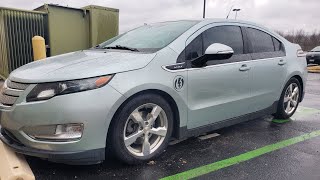

The Cadillac ELR is based on the same platform as the first-generation Chevrolet Volt (2011-2015). They share the same ABS control module assembly. This means you can source a compatible used part from a Volt, which can significantly widen your search options. Just be sure to verify the part numbers and the J17 RPO code.

Programming and Installation

Module Programming

After the new or used module is installed, it must be configured to the vehicle. This process writes your car's VIN and specific equipment configuration to the module, allowing it to communicate with the other computers in the car.

• Who can program it? A GM dealership or a qualified independent repair shop that has a subscription to GM's Techline Connect (SPS2) software 🎬 See this GM EV programming guide and a J2534 pass-thru device (like a GM MDI 2). Some mobile automotive programmers also offer this as a service.
• What is the procedure? The technician will use the software to perform a "Replace and Reprogram" routine on the Electronic Brake Control Module (EBCM). This downloads the correct calibration file from GM's servers and flashes it to the module.

Brake Bleeding

After replacing the hydraulic unit, the entire brake system must be bled to remove air. On the ELR and Volt, this is a complex procedure that cannot be done with a manual or simple vacuum bleeder. It requires a pressure bleeder and a scan tool to cycle the ABS pump and solenoids in a specific sequence to purge all trapped air from the new modulator. Failure to perform this procedure correctly will result in a spongy brake pedal and poor braking performance.

Cost to Replace a 2014-2016 Cadillac ELR ABS Module

The cost can vary significantly based on the part source and local labor rates. Programming costs are in addition to the physical installation labor.

Note: Prices are estimates as of late 2024 and do not include taxes or potential diagnostic fees. RepairPal estimates a total dealer repair cost between $1,712 and $2,049.
