2016-2025 Tesla Model S & X A/C Evaporator: Decoding the Musty Smell vs. True Failure

A Critical Warning: Two Different Systems for Model S & Model X

• 2016 - Early 2021 Models: These vehicles use a more traditional HVAC system where the evaporator core can sometimes be sourced as a standalone component (like part number 6007601).
• Late 2021 - 2025 'Palladium' Models: These vehicles use a more integrated heat pump HVAC module. For these cars, the evaporator is typically replaced as part of a complete HVAC unit assembly (like part numbers starting with 1688888).

The #1 Issue: Musty, Sour, or Vinegar-Like Smell

By far, the most common A/C issue reported by Tesla Model S and Model X owners is a foul smell from the vents, often described as musty, sour, like vinegar, or like dirty socks. This smell is caused by mold and bacteria growing on the evaporator core. Because the evaporator gets cold and wet from condensation, it creates a perfect breeding ground for mildew if it doesn't dry out properly. The problem can be worse after rain or in humid climates.

If a bad smell is your only symptom, you do NOT need to replace the evaporator core. The standard, and correct, fix involves two steps:

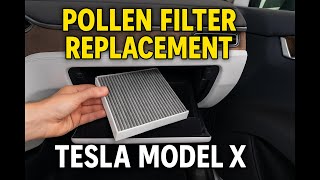

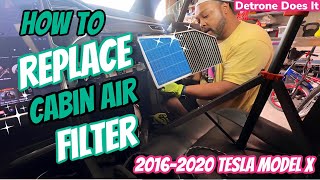

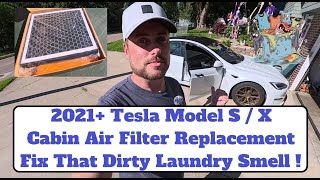

1. Replacing the Cabin Air Filters: These filters trap dust and debris, but can also absorb moisture and contribute to the odor.

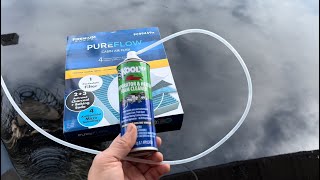

2. Cleaning the Evaporator Core: This is done by injecting a specialized foaming cleaning agent 🎬 Watch: Step-by-step Model X evaporator cleaning tutorial into the HVAC case. The foam expands to cover the evaporator fins, killing the mold and bacteria. As the foam condenses, it drains out of the vehicle's A/C drain tube, taking the contaminants with it.

Symptoms of a Mechanically Failed Evaporator Core

While the odor issue is most common, the evaporator core can also fail mechanically. Symptoms of a true failure are different from just a bad smell and require a full replacement.

• Weak or No A/C Cooling: If the air from the vents is not cold, it can be a symptom of many issues, but if the evaporator is leaking refrigerant, the system loses its ability to cool. Sometimes this may be accompanied by a "Climate keeper unavailable due to system fault" message, which can occasionally be resolved with a vehicle power cycle or soft reset.
• Sweet Chemical Smell Inside the Cabin: Refrigerant often has a distinct, faintly sweet smell. If you notice this inside the car, it's a strong indicator of a leak in the evaporator core, as it's the only part of the A/C's sealed refrigerant loop located inside the cabin.
• Windows Fogging Unexpectedly: A functioning evaporator removes humidity. If it fails or is clogged, the air blown onto the windshield will be moist, causing it to fog up and be difficult to clear.
• Hissing Sounds From the Dashboard: A hissing or gurgling sound from behind the dashboard when the A/C is running can indicate refrigerant is leaking from the core.
• Water Leaking into Passenger Footwell: The evaporator produces a lot of condensation, which is supposed to exit the car through a drain tube. If this tube becomes clogged with debris, the water can back up and leak into the passenger-side footwell. While often just a clogged drain, a severely damaged evaporator housing could also cause this.

Buying a Used A/C Evaporator Core or HVAC Assembly

Given the high cost of a new unit from Tesla, a used OEM evaporator or complete HVAC assembly is an excellent, cost-effective option. Tesla parts are built to a high standard, and a recycled unit offers the same fitment and performance as a new one. Here’s what to check before buying:

• Verify the Part Number: This is the most critical step. Double-check the part number on your original unit and match it to the used part. The pre-2021 and post-2021 'Palladium' systems are completely different. For example, 1688888-xx-x numbers are for 2021+ models, while numbers like 1116133-xx-x or 6007601 are for earlier models.
• Inspect for Leaks: Look for oily residue, especially around the inlet and outlet pipe connections. This residue is refrigerant oil and is a clear sign of a past leak. The aluminum fins should be clean and free of dark, oily patches.
• Check the Fins: The thin aluminum fins should be straight and not crushed or heavily corroded. Bent fins can restrict airflow and reduce cooling performance.
• Examine the Housing (for complete assemblies): For 2021+ units, you'll be buying the entire HVAC box. Inspect the plastic housing for any cracks, broken mounting tabs, or signs of damage. Ensure all actuators and sensors are present and appear intact.
• Ask About the Donor Vehicle: If possible, get the mileage and year of the vehicle the part came from. A part from a lower-mileage, newer vehicle is always preferable.

Replacement Difficulty & Labor Costs

Difficulty Rating: 5 out of 5 (Professional Recommended)

Replacing the evaporator core or the full HVAC assembly in a 2016-2025 Tesla Model S or Model X is an extremely complex and time-consuming job that is not feasible for a typical DIY mechanic. The official Tesla service procedure is one of the most involved repairs for these vehicles.

The process involves:

1. Properly recovering the A/C refrigerant using specialized equipment.
2. Disconnecting the high-voltage and 12V power supplies.
3. Removing both front seats and the entire center console.
4. Systematically removing the glove box, various trim panels, A-pillars, and steering column.
5. Disconnecting dozens of electrical connectors for the main screen, instrument cluster, airbags, and control modules.
6. Removing the entire instrument panel (dashboard) assembly from the vehicle as one large piece.

Only then can the HVAC module be accessed, removed, and disassembled to replace the evaporator core. Because of this complexity, labor costs are the most significant part of the total expense.

Cost Comparison

The cost of this repair is dominated by labor. While the part itself can be affordable, the 8-10+ hours of shop time is what drives up the price.
