2014-2016 Spark EV A/C Condenser: Failure Symptoms & Replacement Warnings
This guide covers common failure symptoms, inspection tips for used parts, and critical warnings for the unique A/C condenser on the 2014-2016 Chevrolet Spark EV.
- This condenser is ONLY for the 2014-2016 Spark EV and will not fit the gasoline model.
- The A/C system is essential for cooling the high-voltage battery; a failure can lead to reduced vehicle performance or battery damage.
- The receiver/drier is built into the condenser. When buying used, ensure the part was sealed immediately after removal to protect the internal desiccant.
- Replacement is not a DIY job. It requires specialized equipment to legally handle and recharge the R-1234yf refrigerant.
A/C Condenser Failure Symptoms: 2014-2016 Chevrolet Spark EV
A failing A/C condenser on a Spark EV will quickly lead to poor or no cooling in the cabin. Because the A/C system is also tied to the battery's thermal management, addressing these symptoms is important for the vehicle's overall health.
Most Common Symptoms
- Warm or No Cool Air: This is the most obvious sign. The A/C system is running, but the air from the vents is not cold or is only slightly cool. This happens because a damaged or clogged condenser cannot effectively release heat from the refrigerant.
- A/C System Shuts Off: Modern A/C systems have a high-pressure switch that will shut down the compressor if pressure gets too high. A blocked or clogged condenser can cause this pressure spike, leading to the system turning itself off to prevent damage.
- Visible Leaks or Oily Residue: The A/C system uses a special oil that circulates with the refrigerant. If the condenser is leaking, you may see an oily, greasy film on the condenser fins, on components nearby, or even on the ground under the front of the car.
- Visible Damage: Since the condenser is at the very front of the car, it is vulnerable to damage from road debris like rocks and insects. Bent or crushed fins can block airflow, and a direct impact can cause a leak.
- Burning Smell: In severe cases, a condenser that cannot dissipate heat can cause other A/C components to overheat, potentially creating a burning smell when the A/C is on. This indicates a serious problem that requires immediate attention.
Warning: The A/C system in the Spark EV is crucial for cooling the high-voltage battery. A fault code like P0534 (A/C Refrigerant Charge Loss) indicates a serious issue that should not be ignored. Driving for extended periods with a non-functional A/C system, especially in warm weather, can risk overheating the battery, which may lead to reduced power or permanent damage.
Buying a Used A/C Condenser for a Spark EV
A used OEM condenser can be a cost-effective solution, but careful inspection is key. The Spark EV uses a specific condenser that is not shared with the gasoline model, so verifying the part is crucial.
Physical Inspection Checklist
- Check for Damage: Carefully inspect the fins and tubes. Look for large areas of bent fins, which can restrict airflow. Minor fin damage can be carefully straightened with a fin comb, but widespread damage is a red flag.
- Inspect for Leaks: Look for any oily residue, which is a clear sign of a past refrigerant leak. Pay close attention to the inlet and outlet connections and the welds where the tubes meet the end tanks.
- Check for Corrosion: Examine the aluminum body for heavy white corrosion, especially in areas where road salt is common. Corrosion can weaken the metal and lead to future leaks.
- Ensure Ports are Capped: The A/C condenser for the Spark EV includes an integrated receiver/drier. This component contains a desiccant material that absorbs moisture from the refrigerant. If the condenser was removed from the donor vehicle and left un-capped, this desiccant will become saturated with moisture from the air, rendering it useless. A saturated drier will cause the A/C system to fail prematurely. Only purchase a used condenser that has had its inlet and outlet ports securely capped since removal. 🎬 See this step-by-step guide on replacing a condenser and drier
Pro Tip: The OEM part number for this condenser is 22960940. Always verify this part number or cross-reference with the seller to ensure you are buying the correct part for your Spark EV. Aftermarket parts may use different numbers like 4463.
Known Issues, TSBs, and Recalls
While there are no specific recalls for the A/C condenser itself on the 2014-2016 Spark EV, some related service communications exist:

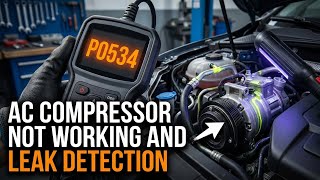

- Technical Service Bulletin (TSB) PIC5903C: This bulletin addresses the trouble code P0534 (A/C Refrigerant Charge Loss). 🎬 Watch: Understanding trouble code P0534 and refrigerant loss It guides technicians to check for leaks, with a known potential issue being the RESS cooler (battery cooler) on some 2014 models. However, a leaking condenser is also a common cause of refrigerant loss.
- Customer Satisfaction Program 13434A: For 2013-2014 models (including the EV), GM issued a program for A/C systems that were inoperative or cooled intermittently due to issues with the evaporator temperature sensor or A/C compressor.
- Hood Latch Recall (22V640000): While not directly related to the A/C system, this recall for corroding secondary hood latches affects 2014-2015 Spark EVs. A hood that opens unexpectedly could potentially damage front-end components, including the condenser.
Cost Comparison for Spark EV A/C Condenser Replacement
| Part/Service | Estimated Cost |
|---|---|
| New OEM (GM Part #22960940) | $250 - $400 |
| New Aftermarket | $55 - $150 |
| Used OEM | $75 - $175 |
| Shop Labor (including system evacuation & recharge) | $300 - $500+ |
Frequently Asked Questions (FAQ)
Can I use an A/C condenser from a regular gasoline-powered Chevy Spark?
No. The A/C condenser for the Spark EV is specific to the electric models. The mounting points and possibly the hose connections are different. You must use a condenser with the OEM part number 22960940 or a direct aftermarket replacement specified for the 2014-2016 Spark EV.
Do I need to replace the receiver/drier at the same time?
Yes, but on the Spark EV, the receiver/drier (also called an accumulator or desiccant bag) is integrated into the condenser assembly. It is not a separate part. This is why it is critical that a used condenser has been sealed; if not, the integrated drier is already ruined. Professional installation always includes replacing this component, which you do automatically when you replace the entire condenser unit.
Can I replace the A/C condenser myself?
This is not recommended for a DIY mechanic without the proper equipment. Replacing the condenser requires recovering the refrigerant from the system before opening it, which legally requires a certified technician and specialized recovery machine. After installation, the system must be put under a deep vacuum to remove all air and moisture before being recharged with the precise amount of refrigerant. The 2014-2016 Spark EV uses R-1234yf refrigerant, which is different and more expensive than the older R-134a.
🎬 Watch: How professionals service R-1234yf A/C systemsWhat causes the condenser to fail?
The most common cause of failure is physical damage from road debris like stones or gravel, which can puncture the thin aluminum tubes or damage the fins. Corrosion from road salt and environmental exposure can also eat away at the aluminum over time, leading to leaks. Internal clogs can also occur, but these are less common than external damage.

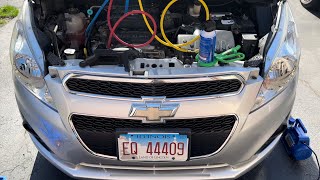

Helpful Videos
Technical Specifications
OEM Part Numbers: 22960940
Core Type: Parallel Flow. Includes integrated receiver/drier and bracket. Refrigerant Type: R-1234yf.
